Chinese High Quality Steel Strucuture Warehouse/Workshop----- BT-Gr200403

Chinese High Quality Steel Strucuture Warehouse/Workshop----- BT-Gr200403

Product Details
Produtcion description :

Chinese High Quality Steel Strucuture Warehouse/Workshop----- XGZ-GR200327

Application:

All kinds of steel buildings, metal buildings, modular house, steel frame for warehouse, workshop, garage,garden,shed etc, steel beams, other riveting and welding parts.

Building Type: Single slope, double slope, Single span, double-span, Multi-span,single floor, double floors!

Design parameters

size: width X length X eave height, roof slope.
Wind speed(KM/H), Snow load (KG/M2), Demands for doors and windows

Crane(if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
Structural System


Base: Cement and steel foundation bolts

Column and beam: Q345 or Q235 steel , all bolts connection! Straight cross-section or variable cross-section!

Bracing: X-type bracing made from angle, round pipe etc.

Type C or Z purlin: Size from C120~C250, Z180~Z250

Surface treatment: Two layers of Anti-rust Painting!or,galvanized.

Roof and Wall Panel
Single colorfull corrugated steel sheet0.18~0.60mm thickness, or sandwich panel with EPS, GLASS WOOL,ROCK WOOL, PU etc, insulation thickness around 50mm~100mm

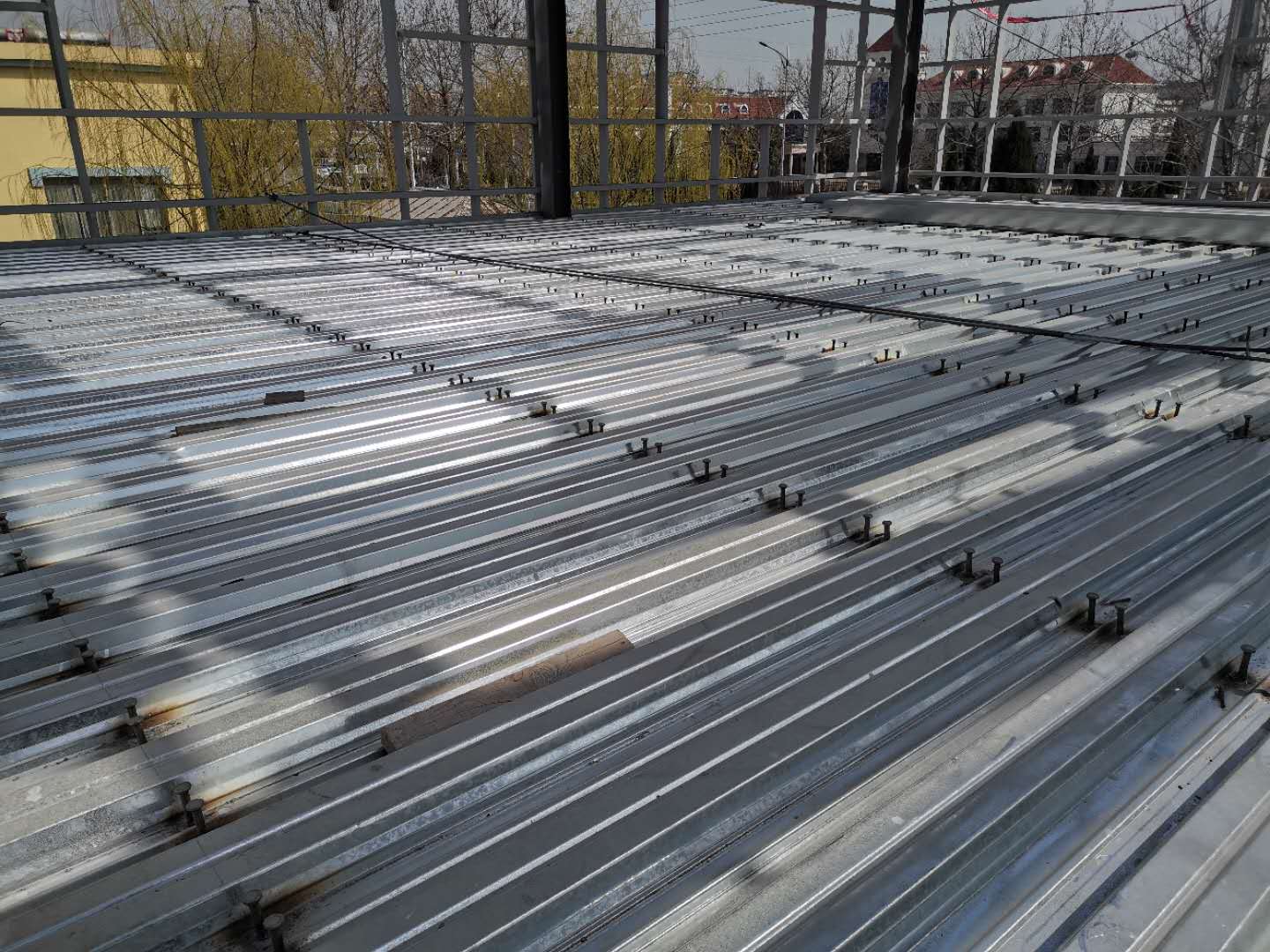

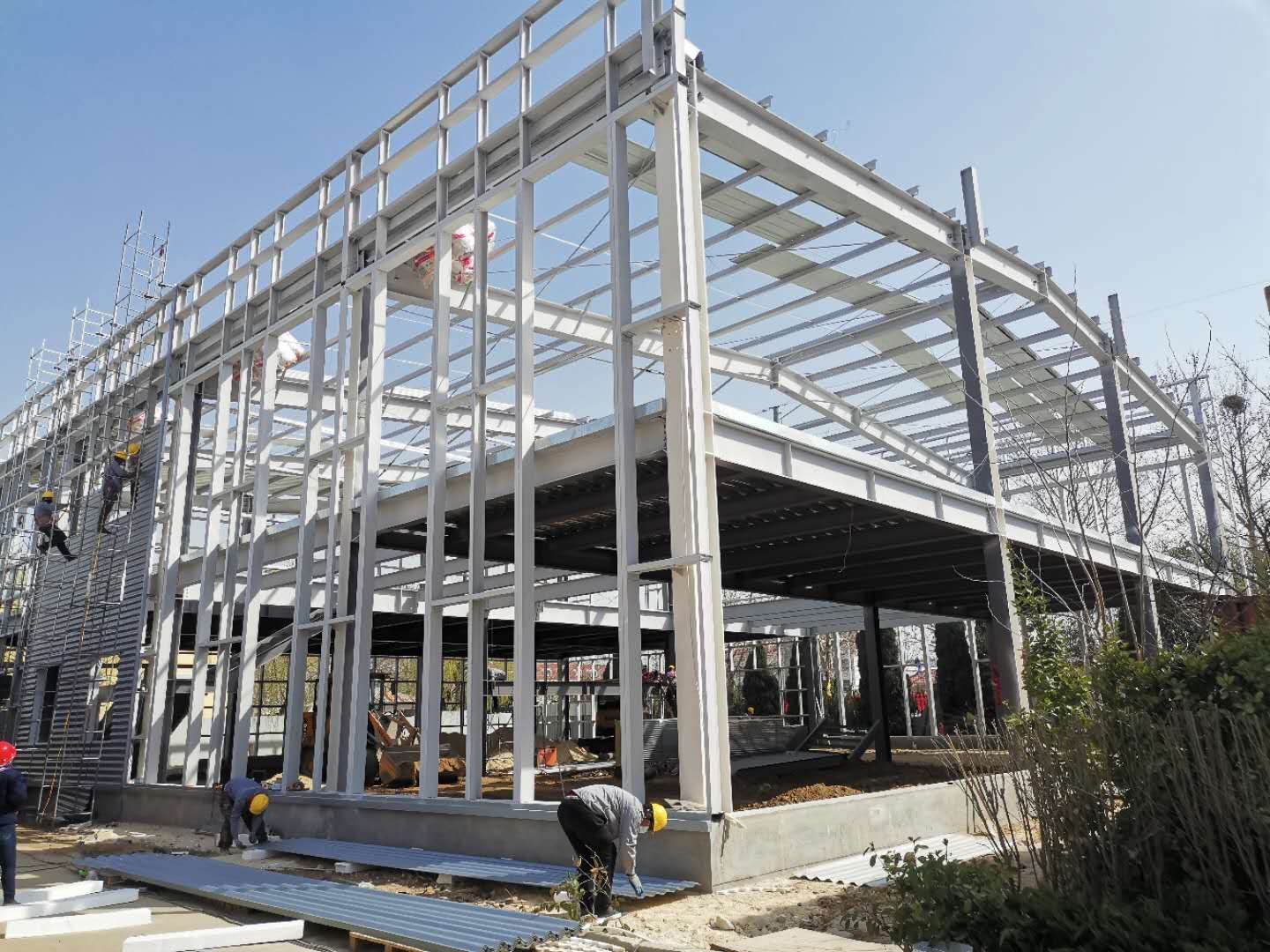

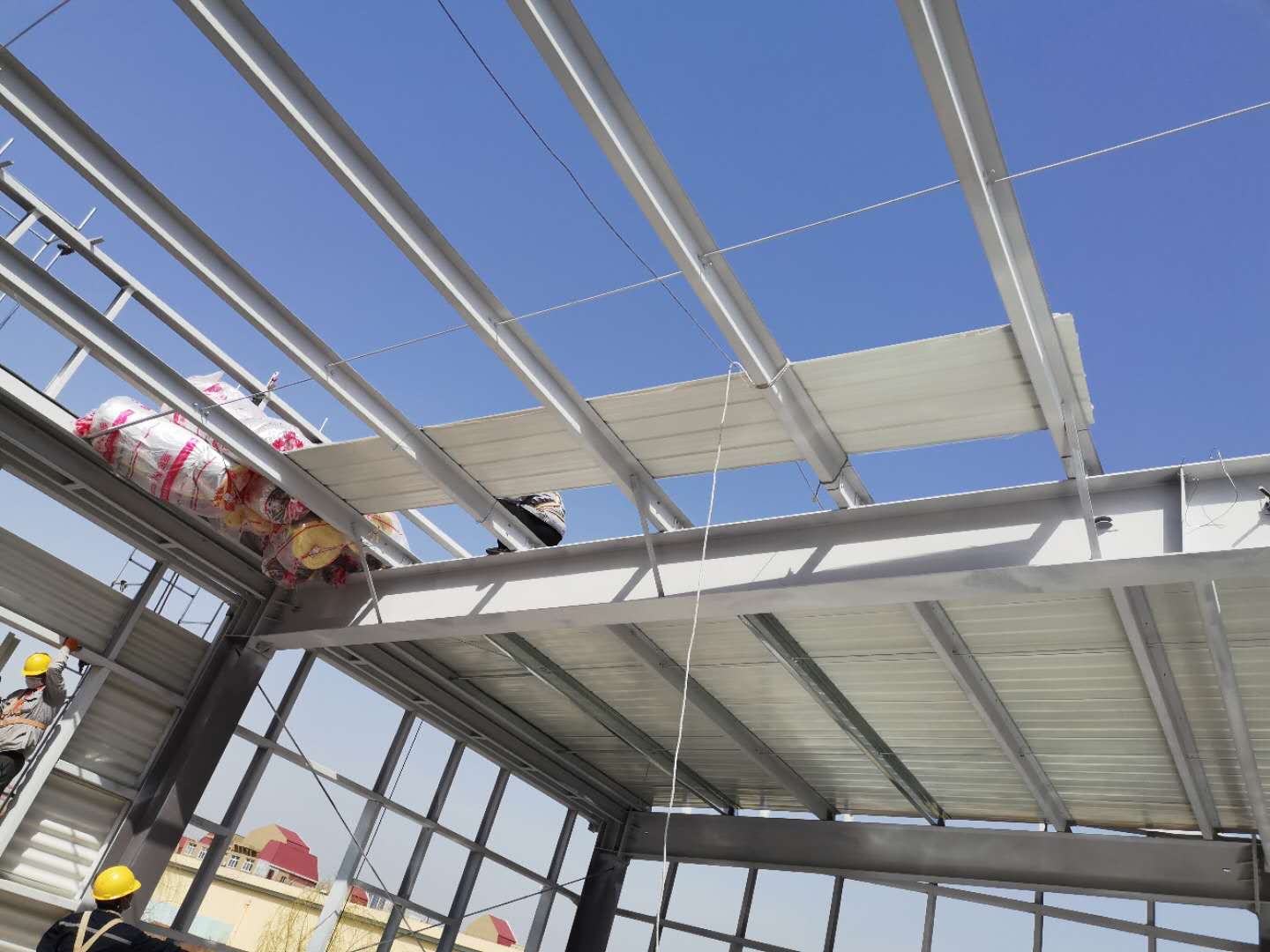

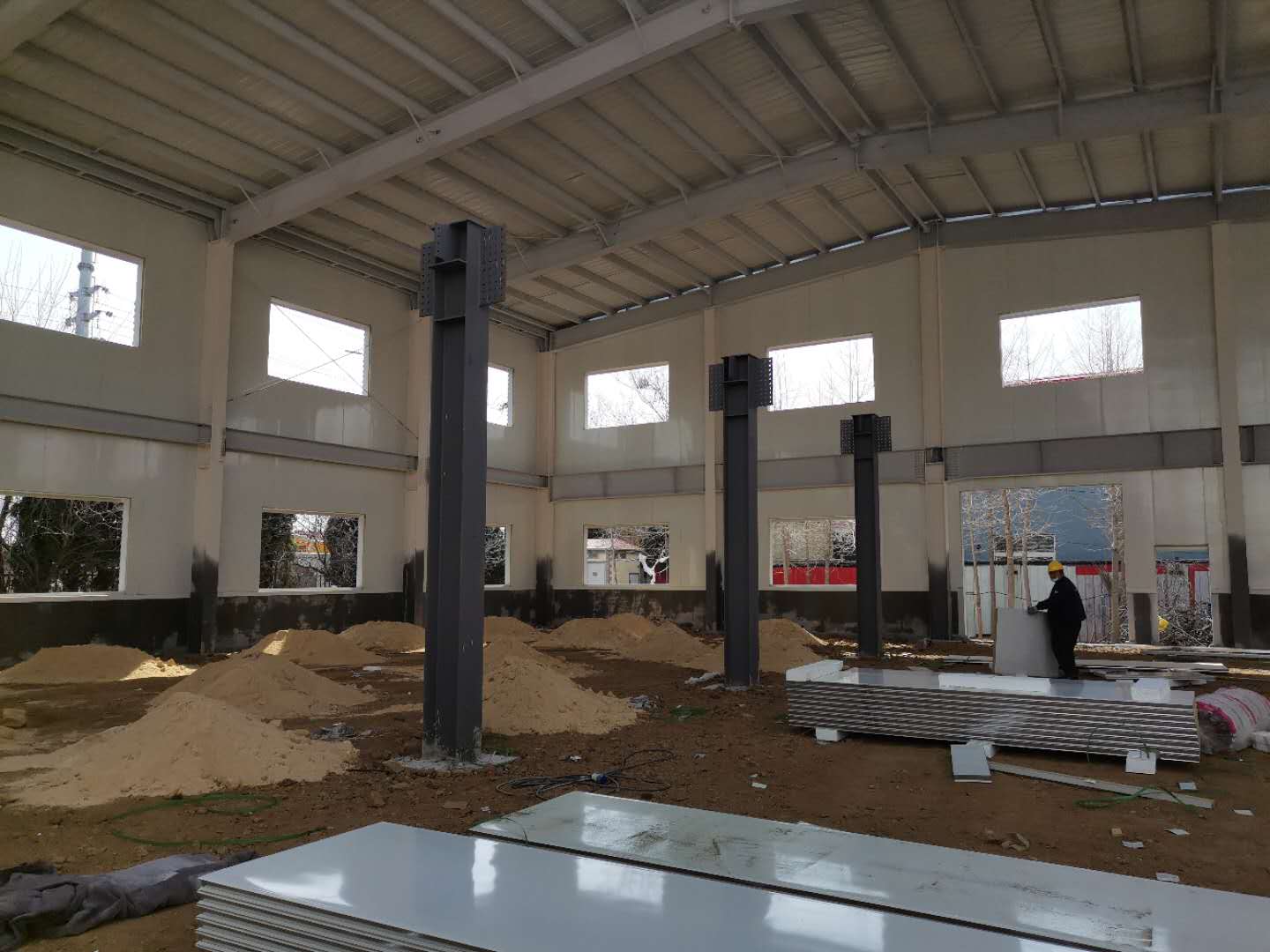

The products photo showing:

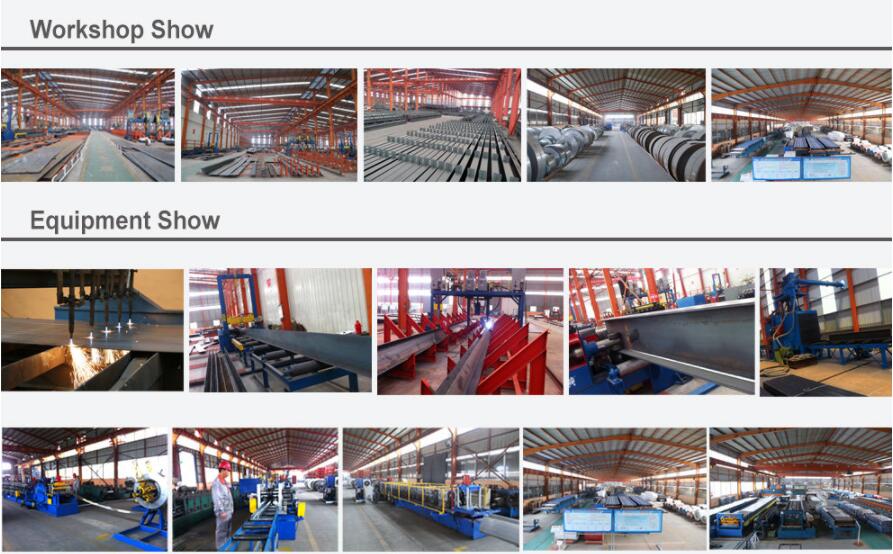

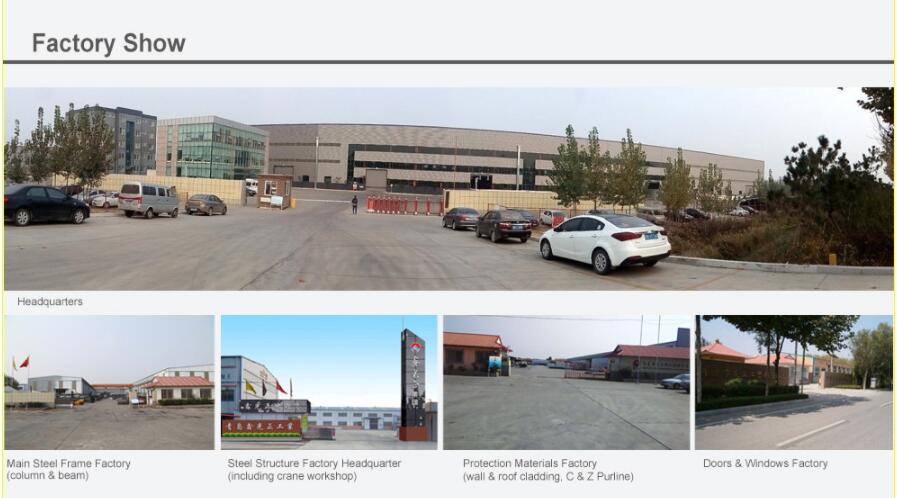

1. We have 100,000 sqm workshop and 950 workers, we are the biggest steel structure exporter in north of China, I guarantee you high quality and best service!

2. All the parts are connected by bolts, you don't need to weld when installation, so you don't need to find the electric, electric welding machine and welder.

3. We buy steel material only from Jigang Group, Qingdao iron and steel Group, Laigang Group, the biggest steel company in China, to ensure the best quality!
4. We have more than 18 years designing experience, our professional software are CAD,PKPM,Tarklar,Tianzheng and so on, make sure the best design.

5. We can produce 2000 ton steel structure one month, so we can guarantee the delivery on time!
 light Steel Structure Prefab Workshop


2. Parameter & Specification
Parameters Name China Prefabricated Steel Structure Game Workshop
Brand XGZ
Anti-fire Grade B1
Anti-earthquake Grade As per your requests
Wind Load 0.6kn/m2
Live Load 0.5kn/m2
Dead Load 0.3kn/m2
Service Life Within 50 years
Other Performance Anti-static, Anti-moist, strong enough and easily assemble

Specifications

Span 18m
Length 168m
Eave Height 31m
Column Spacing 6m
Steel Column H section steel
Steel Beam H section steel
Wall Purlin C section steel
Roof Purlin C section steel
Column Brace 76 steel angle
Horizontal Brace 76 steel angle
Insulation Fiber Glass wool blanket
Wall Panel V-900  0.5mm color steel sheet
Roof Panel V-820  0.5mm color steel sheet
Crane 2 set, 5t
Water System 160 PVC downpipe
Component Paint main structure sprayed 3 times, secondary frame for 2 time
Door EPS Sandwich Panel Door
Window Plastic Steel Window
Canopy Single sheet and sandwich panel
Ventilation  Ventilato
