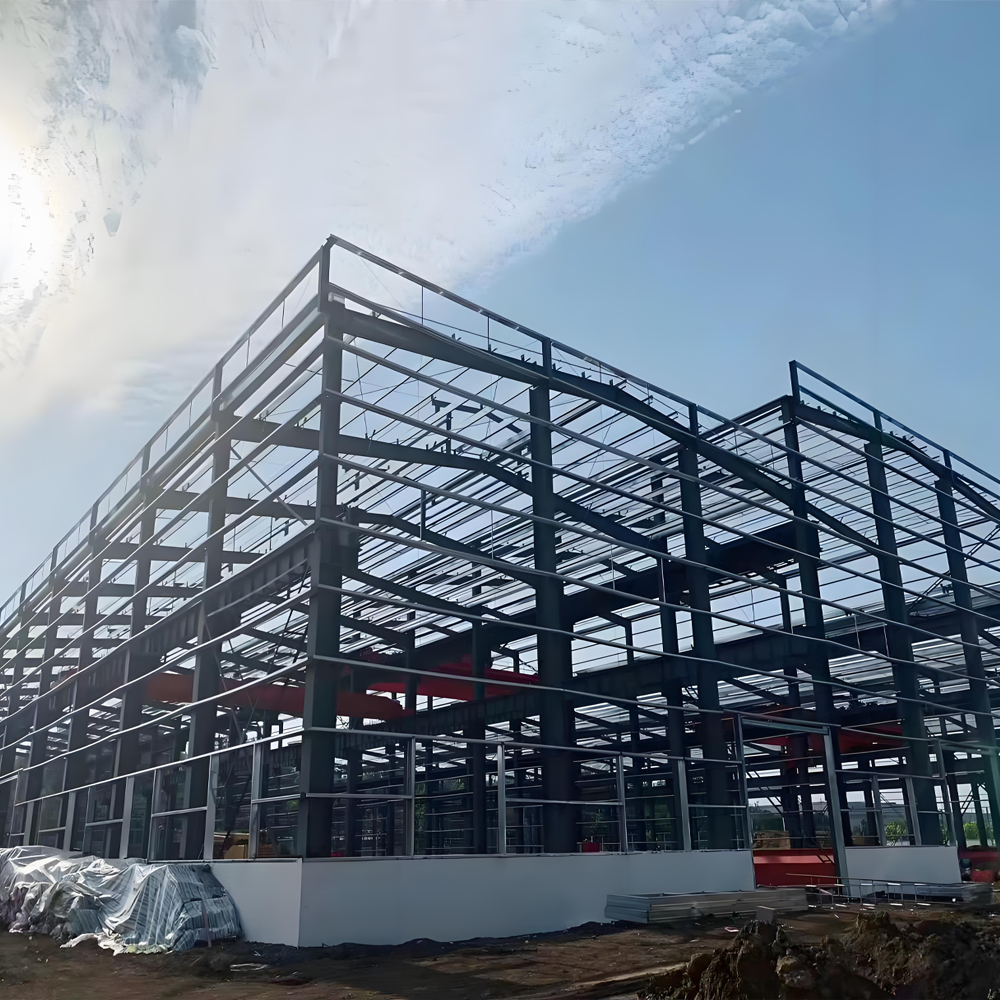

Thermal Challenges in Steel Structure Buildings

1. Rapid Heat Absorption & Transfer
   Metal cladding absorbs solar radiation, transferring heat to interior spaces through thermal conduction.

2. Building Opening Analysis
   Requires evaluation of:

• Window/door dimensions
• Opening frequency patterns
• Air infiltration/exfiltration rates

3. Heat Source Assessment

• Identify process equipment thermal loads
• Adjust ventilation requirements based on heat output:
  Ventilation Volume ∝ Heat Generation Rate

4. Spatial Configuration
   Map:

• Equipment layout
• Personnel distribution
• Zonal occupancy patterns

Integrated Cooling Strategies

Option 1: Exhaust System + Evaporative Cooling

• Implementation:
• Install exhaust fans on leeward side
• Deploy evaporative coolers (28°C/82°F supply air) on windward side
• Performance:
• 4-15°C (7-27°F) temperature reduction
• 3-5°C (5-9°F) perceived cooling effect

Option 2: Exhaust + HVLS Fan System

• Configuration:
• Perimeter exhaust fans
• Central HVLS (High Volume Low Speed) fans (Ø7.3m+)
• Benefits:
• Air velocity: 0.5-2.5 m/s adjustable
• 40-70% energy savings vs conventional systems

Option 3: Hybrid Approach

Combines:

1. Cross-ventilation exhaust
2. Evaporative air cooling
3. HVLS air circulation
   Efficiency Gain: 25-40% over single-system solutions

Cost-Effective Cooling Paradigms

1. Whole-Building Cooling

Best For:

• High-density occupancy (≥0.5 persons/m²)
• Large footprints (>5,000m²)
• Multi-source heat generation

System Components:

Performance Metrics:

• 1-3 ACH (Air Changes per Hour)
• 30-50% humidity control
• <5 minute whole-facility air replacement

2. Zoned Spot Cooling

Optimal When:

• Low occupancy density (<0.2 persons/m²)
• Intermittent workstation usage
• Partial storage/assembly areas

Implementation:

• Directed airflow to active workstations
• 40-60% reduced capital expenditure vs whole-building systems
• Typical ROI: 18-24 months

3. Smart Fan Integration

Synergistic System:

• HVLS Fans (≥4m mounting height)
• Evaporative Coolers
• IoT-enabled controls

Technical Advantages:

• 25-30% reduced ductwork requirements
• Dynamic airflow optimization through:
• Thermal zoning
• Occupancy sensors
• Real-time temperature mapping

Economic & Regulatory Considerations

1. Energy Compliance:
• Meets ASHRAE 90.1-2023 standards
• 30-50% lower kW/ton vs conventional AC
2. Safety Protocols:
• OSHA 29 CFR 1910.94 ventilation requirements
• NEC Article 110.26 clearance standards
3. Cost Analysis:

   System Type	Installed Cost ($/m²)	Operational Cost ($/m²/yr)
   Hybrid	35-45	2.8-3.5
   Spot Cooling	18-25	1.2-1.8

This comprehensive approach enables 15-30% productivity improvement through thermal management while maintaining 20-40% energy cost savings versus traditional HVAC solutions.
