Chinese High Quality and Low Price Steel Strucuture Workshop/Steel Warehouse Q345 /Q235 (BT-GR200402
- Contact Us Online
- Free Hotline
+86-532-89639267
Product Details
Produtcion description :
Chinese High Quality Steel Strucuture Warehouse/Workshop----- XGZ-GR200403
Application:
All kinds of steel buildings, metal buildings, modular house, steel frame for warehouse, workshop, garage,garden,shed etc, steel beams, other riveting and welding parts.
Building Type: Single slope, double slope, Single span, double-span, Multi-span,single floor, double floors!
Design parameters
size: width X length X eave height, roof slope.
Wind speed(KM/H), Snow load (KG/M2), Demands for doors and windows
Crane(if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
Structural System
Base: Cement and steel foundation bolts
Column and beam: Q345 or Q235 steel , all bolts connection! Straight cross-section or variable cross-section!
Bracing: X-type bracing made from angle, round pipe etc.
Type C or Z purlin: Size from C120~C250, Z180~Z250
Surface treatment: Two layers of Anti-rust Painting!or,galvanized.
Roof and Wall Panel
Single colorfull corrugated steel sheet0.18~0.60mm thickness, or sandwich panel with EPS, GLASS WOOL,ROCK WOOL, PU etc, insulation thickness around 50mm~100mm

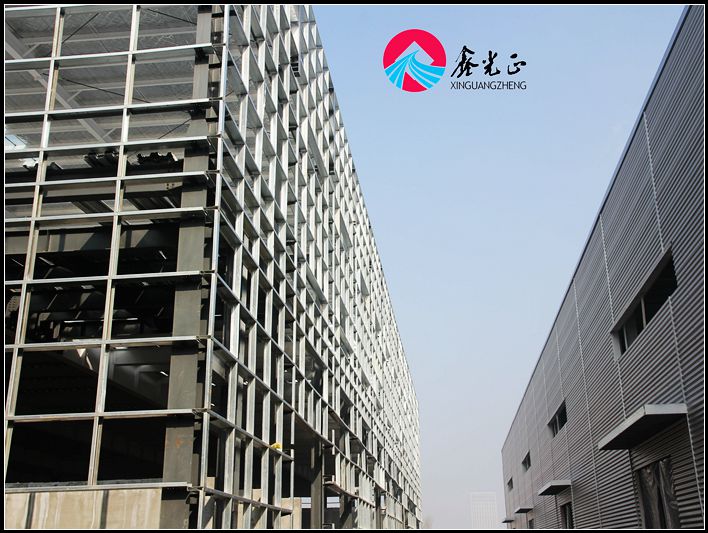

The products photo showing:
1. We have 100,000 sqm workshop and 950 workers, we are the biggest steel structure exporter in north of China, I guarantee you high quality and best service!
2. All the parts are connected by bolts, you don't need to weld when installation, so you don't need to find the electric, electric welding machine and welder.
3. We buy steel material only from Jigang Group, Qingdao iron and steel Group, Laigang Group, the biggest steel company in China, to ensure the best quality!
4. We have more than 18 years designing experience, our professional software are CAD,PKPM,Tarklar,Tianzheng and so on, make sure the best design.
5. We can produce 2000 ton steel structure one month, so we can guarantee the delivery on time!
light Steel Structure Prefab Workshop
2. Parameter & Specification
Looking forward to your visiting our company and response for our produtcts! My whatsapp: 0086 13553025745! Thanks!
Chinese High Quality Steel Strucuture Warehouse/Workshop----- XGZ-GR200403
Application:
All kinds of steel buildings, metal buildings, modular house, steel frame for warehouse, workshop, garage,garden,shed etc, steel beams, other riveting and welding parts.
Building Type: Single slope, double slope, Single span, double-span, Multi-span,single floor, double floors!
Design parameters
size: width X length X eave height, roof slope.
Wind speed(KM/H), Snow load (KG/M2), Demands for doors and windows
Crane(if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
Structural System
Base: Cement and steel foundation bolts
Column and beam: Q345 or Q235 steel , all bolts connection! Straight cross-section or variable cross-section!
Bracing: X-type bracing made from angle, round pipe etc.
Type C or Z purlin: Size from C120~C250, Z180~Z250
Surface treatment: Two layers of Anti-rust Painting!or,galvanized.
Roof and Wall Panel
Single colorfull corrugated steel sheet0.18~0.60mm thickness, or sandwich panel with EPS, GLASS WOOL,ROCK WOOL, PU etc, insulation thickness around 50mm~100mm
The products photo showing:
1. We have 100,000 sqm workshop and 950 workers, we are the biggest steel structure exporter in north of China, I guarantee you high quality and best service!
2. All the parts are connected by bolts, you don't need to weld when installation, so you don't need to find the electric, electric welding machine and welder.
3. We buy steel material only from Jigang Group, Qingdao iron and steel Group, Laigang Group, the biggest steel company in China, to ensure the best quality!
4. We have more than 18 years designing experience, our professional software are CAD,PKPM,Tarklar,Tianzheng and so on, make sure the best design.
5. We can produce 2000 ton steel structure one month, so we can guarantee the delivery on time!
light Steel Structure Prefab Workshop
2. Parameter & Specification
| Parameters | Name | China Prefabricated Steel Structure Game Workshop |
| Brand | XGZ | |
| Anti-fire Grade | B1 | |
| Anti-earthquake Grade | As per your requests | |
| Wind Load | 0.6kn/m2 | |
| Live Load | 0.5kn/m2 | |
| Dead Load | 0.3kn/m2 | |
| Service Life | Within 50 years | |
| Other Performance | Anti-static, Anti-moist, strong enough and easily assemble |
|
Specifications |
Span | 18m |
| Length | 168m | |
| Eave Height | 31m | |
| Column Spacing | 6m | |
| Steel Column | H section steel | |
| Steel Beam | H section steel | |
| Wall Purlin | C section steel | |
| Roof Purlin | C section steel | |
| Column Brace | 76 steel angle | |
| Horizontal Brace | 76 steel angle | |
| Insulation | Fiber Glass wool blanket | |
| Wall Panel | V-900 0.5mm color steel sheet | |
| Roof Panel | V-820 0.5mm color steel sheet | |
| Crane | 2 set, 5t | |
| Water System | 160 PVC downpipe | |
| Component Paint | main structure sprayed 3 times, secondary frame for 2 time | |
| Door | EPS Sandwich Panel Door | |
| Window | Plastic Steel Window | |
| Canopy | Single sheet and sandwich panel | |
| Ventilation | Ventilato |
Looking forward to your visiting our company and response for our produtcts! My whatsapp: 0086 13553025745! Thanks!
